YEVOLT Ground-Mode 12-Line Laser Level YVGLL4XS12T 360° Vertical Coverage ±0.2mm/m Outdoor Daylight Use Single-Person Operation
YEVOLT Ground-Mode 12-Line Laser Level YVGLL4XS12T 360° Vertical Coverage ±0.2mm/m Outdoor Daylight Use Single-Person Operation
Couldn't load pickup availability
SPECIFICATIONS

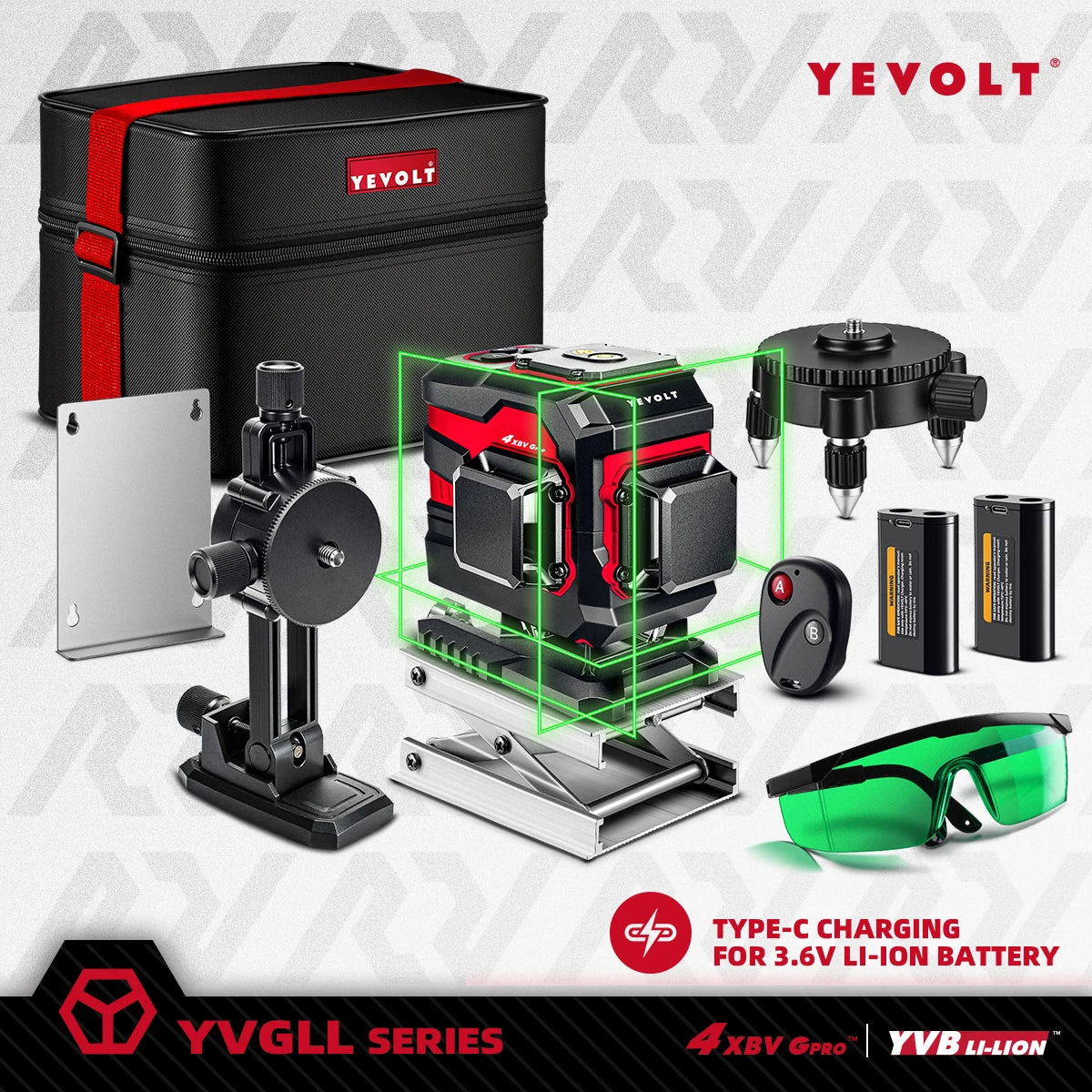

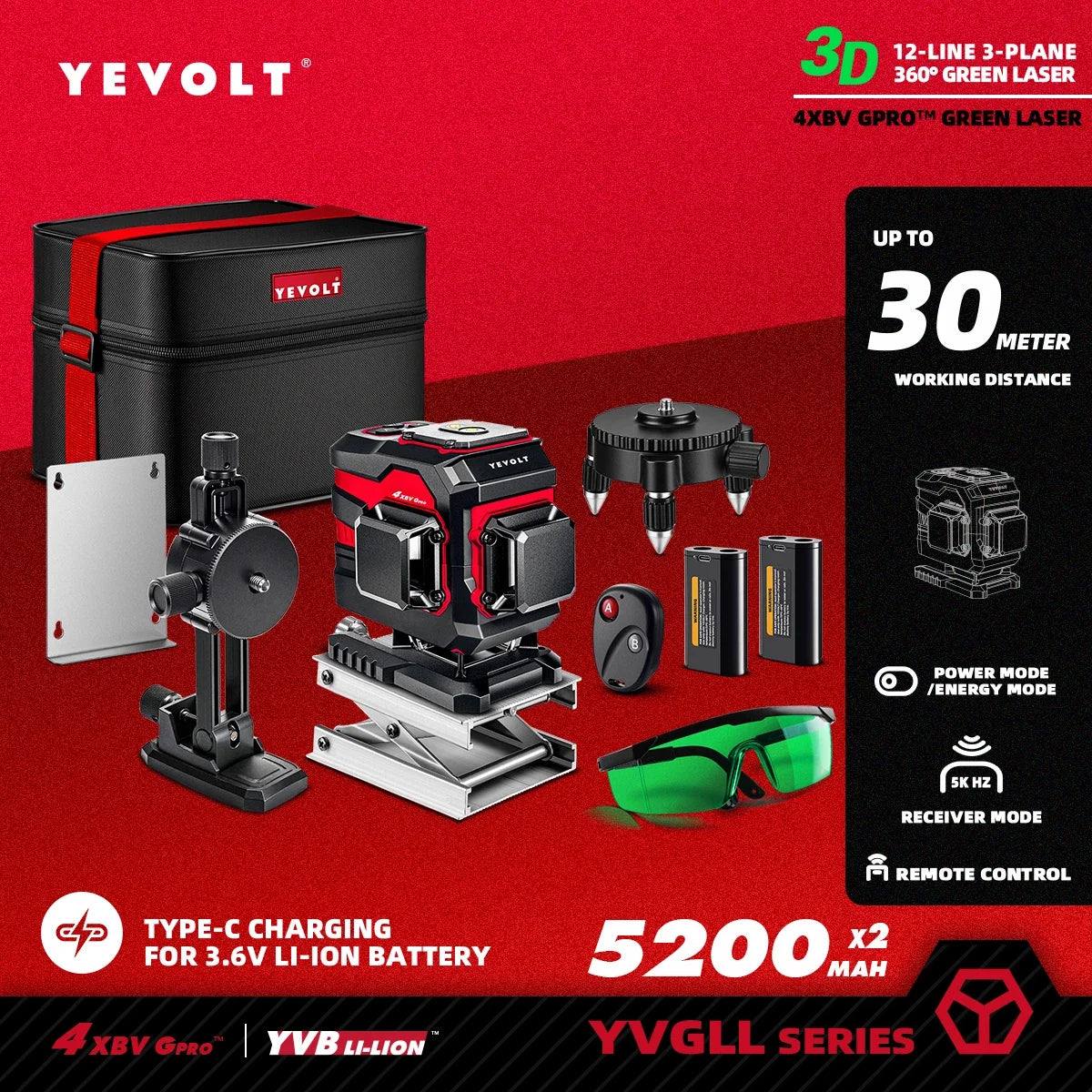

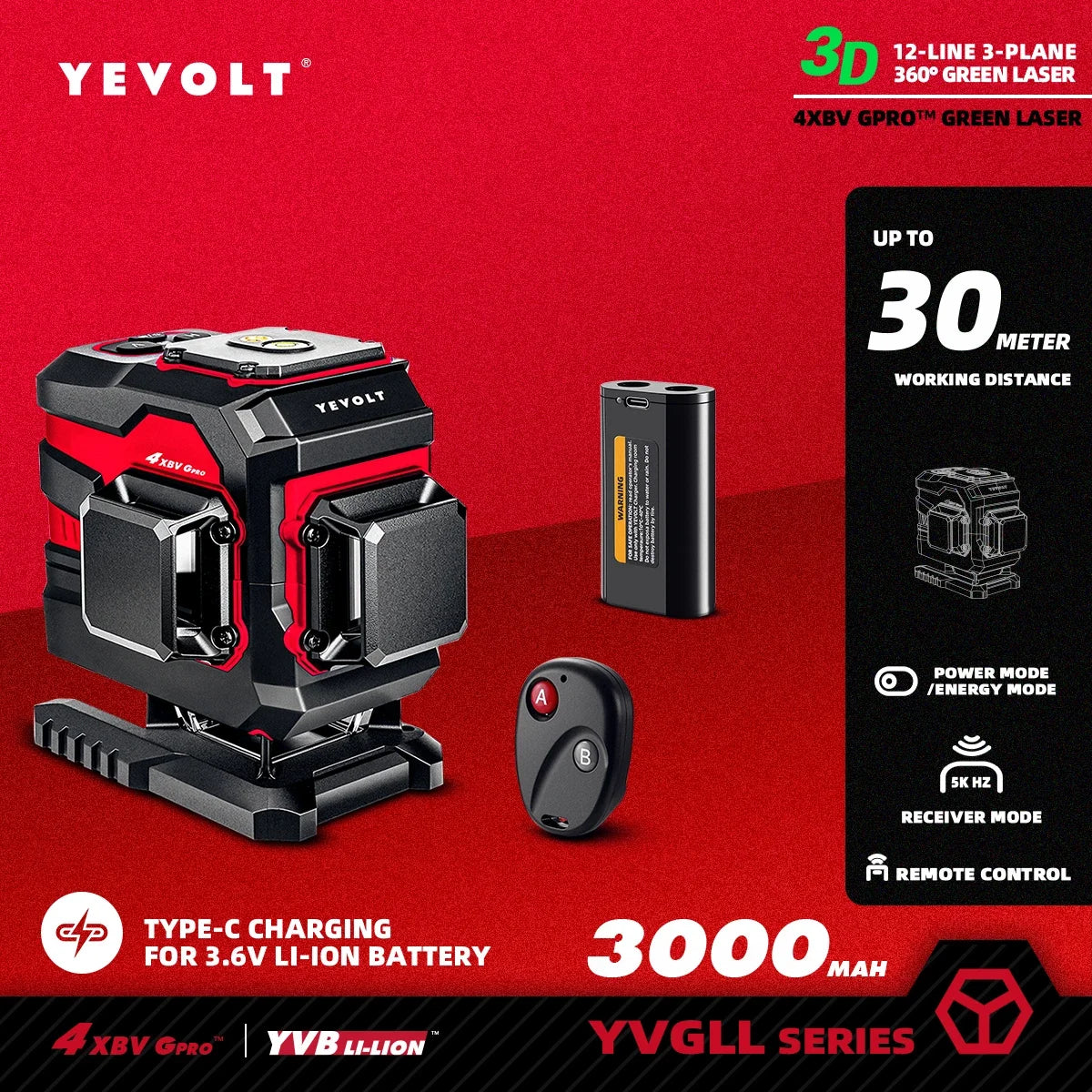

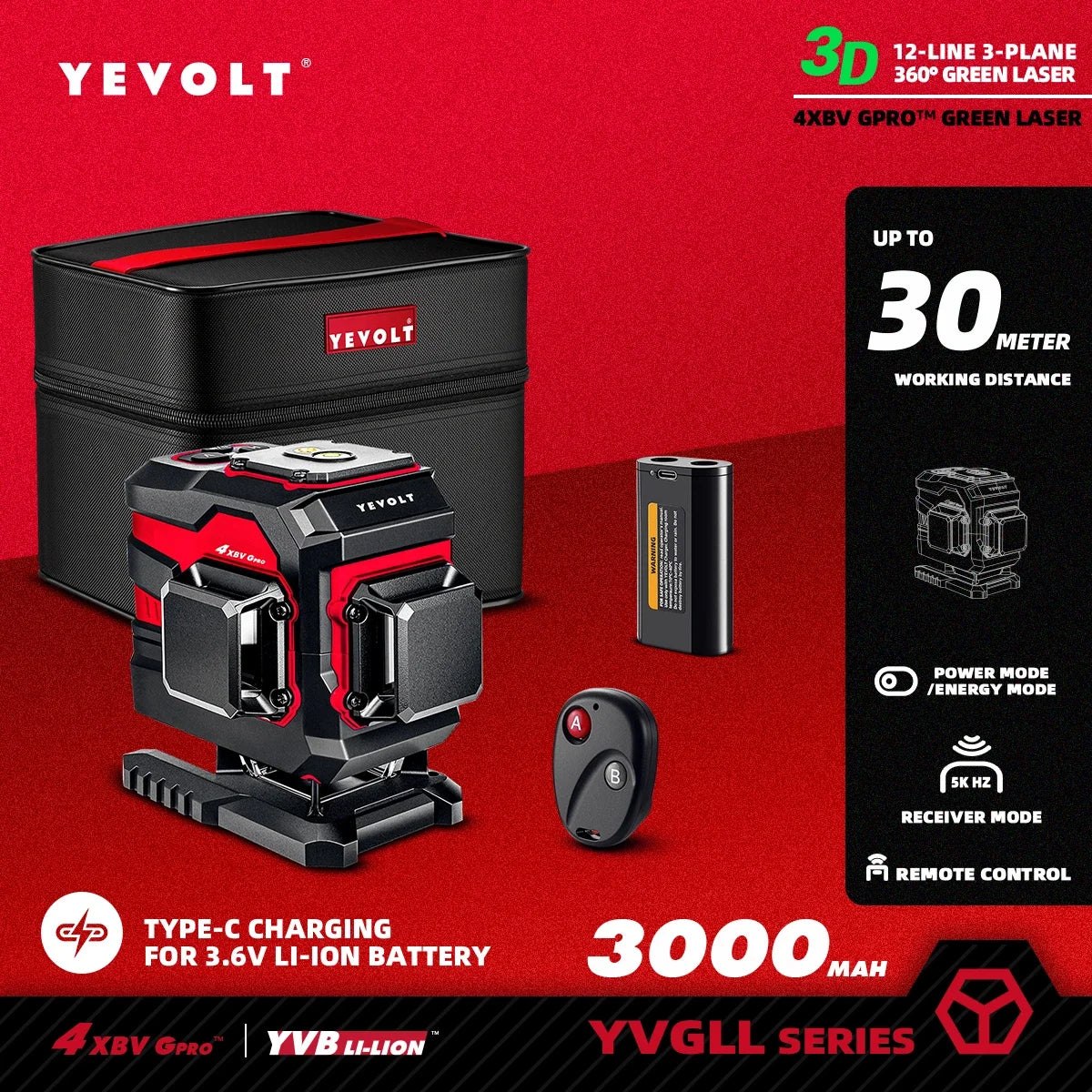

Accessory (Basic): Laser Level x 1, Battery x 1, Charger, Manual, Hard Case
Accessory Kits (B0): Carry Bag

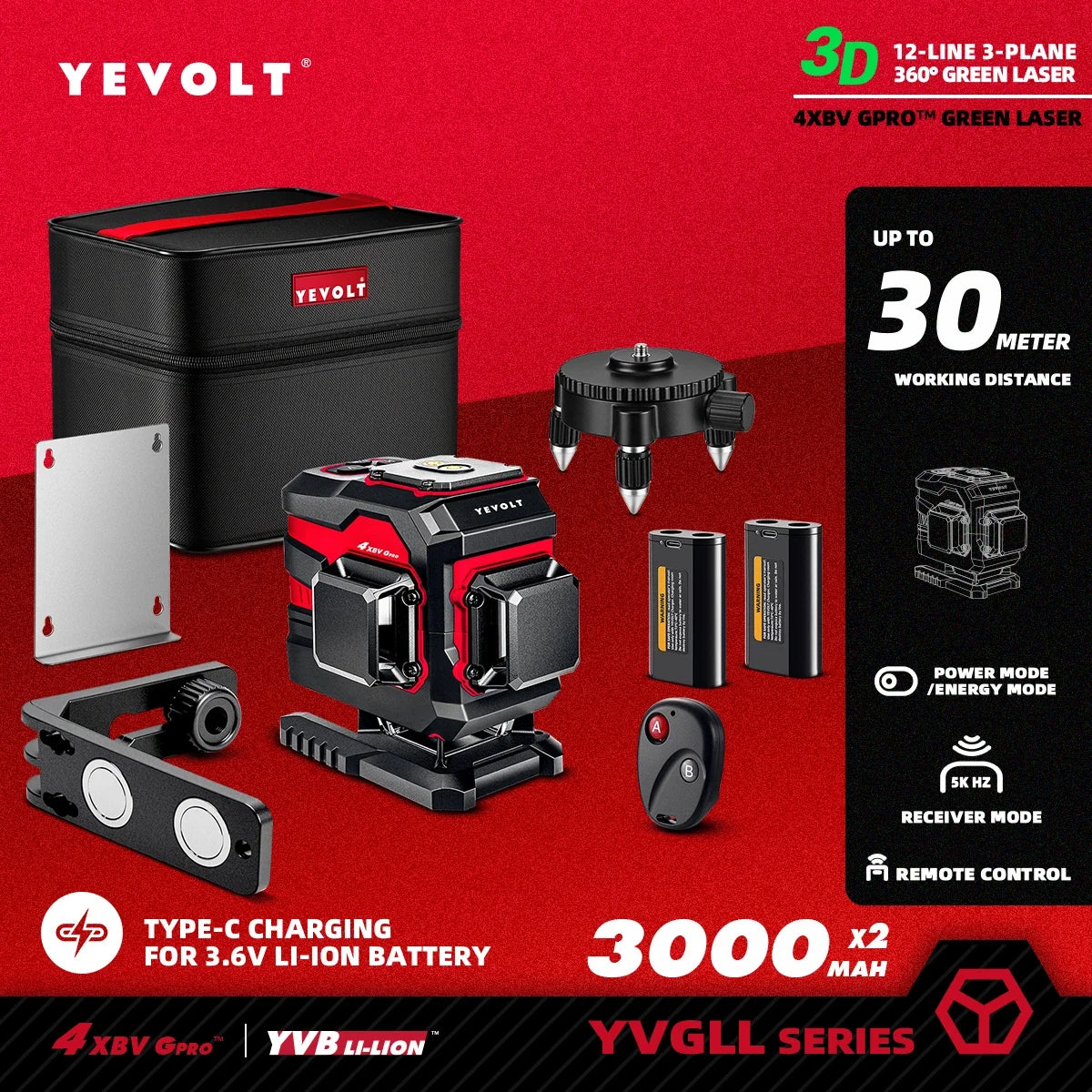

Accessory Kits (B1): Carry Bag + Rotating Base + Magnetic Mount

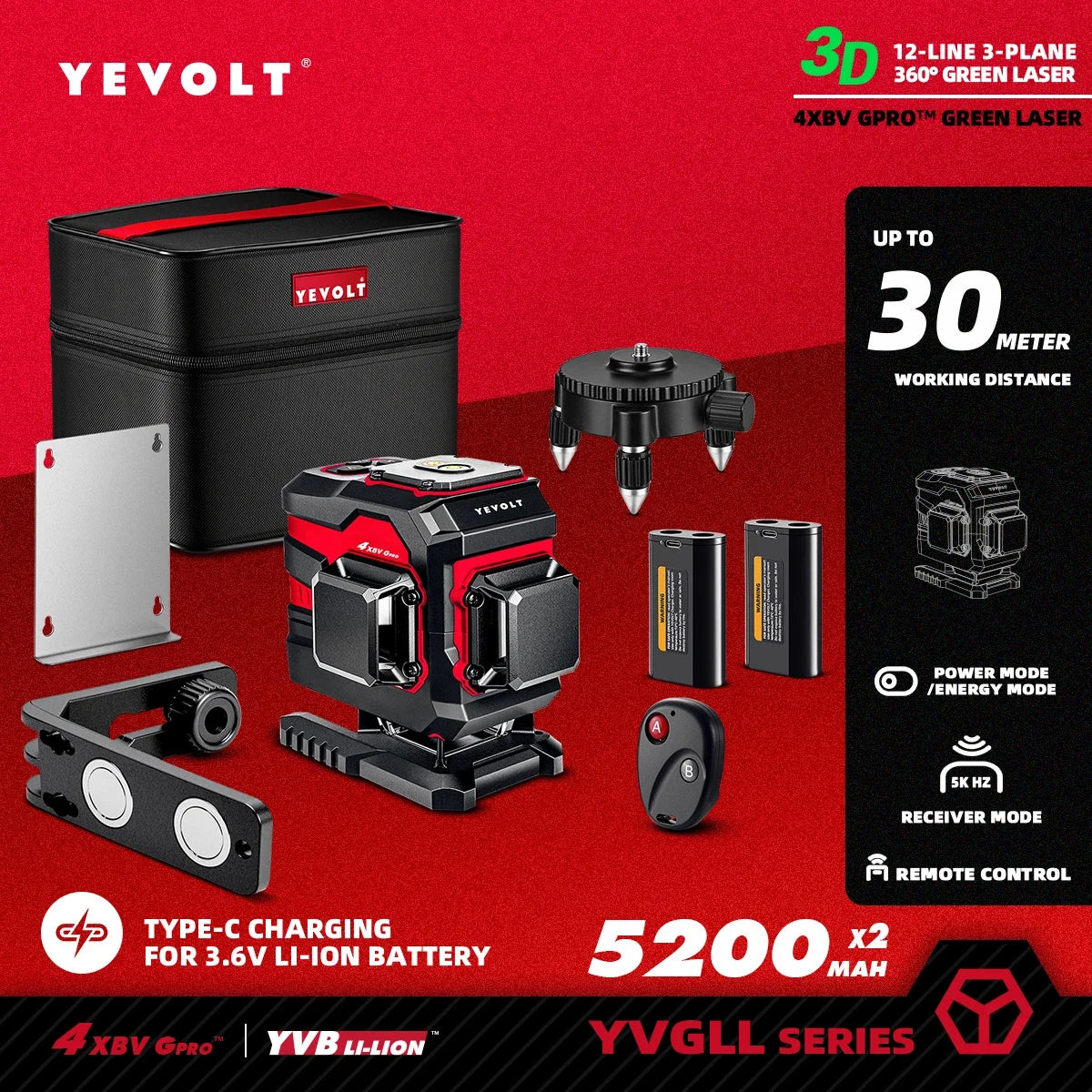

Accessory Kits (B2): Carry Bag + Rotating Base + Magnetic Mount + Glasses + Riser

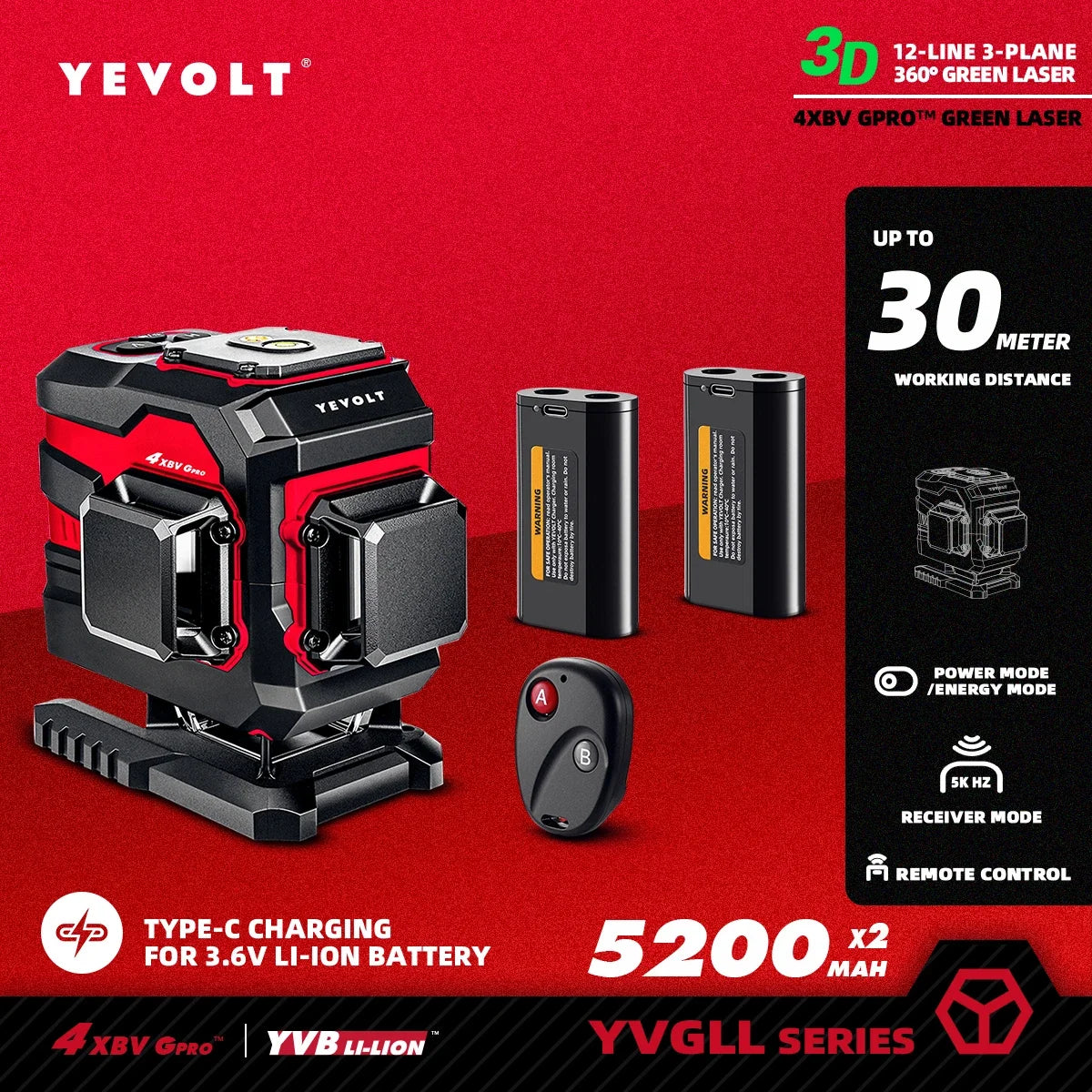

Battery Configuration: P3 (3000mAh)/P5 (5200mAh)
Battery Included: Yes
Battery Life (12 Lines): 6h (P3)/10h (P5)
Battery Life (16 Lines): 4.5h (P3)/8h (P5)
Brand Name: YEVOLT
Certification: CE,EAC,FCC,RoHS,UL,KC
Hign-concerned Chemical: None
Is Smart Device: No
Laser Color: Green (520nm)

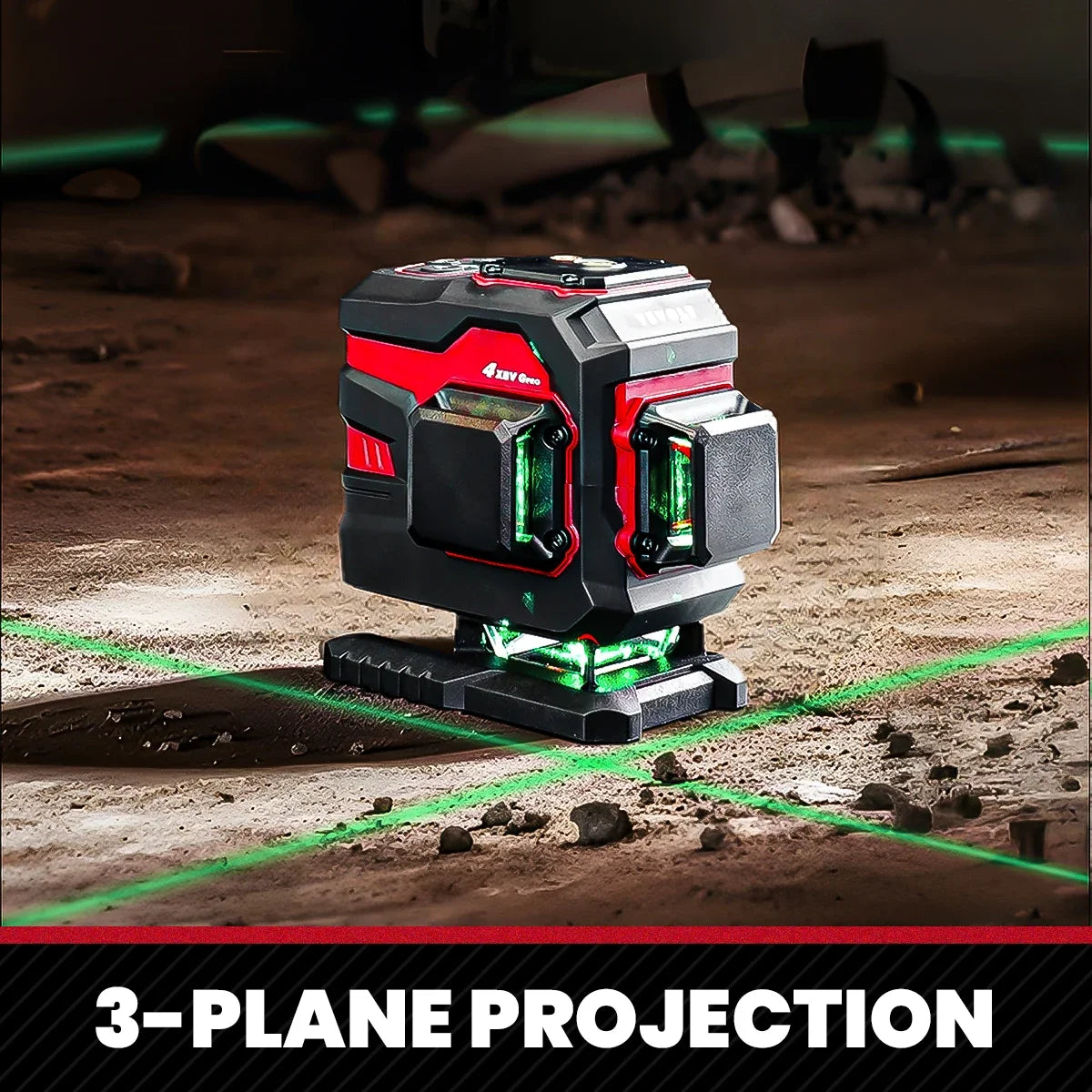

Laser Type: 3-Plane (H+V+Ground Point)
Leveling Time: <4 s
Measurement Model: 12 lines
Model Number: YVGLL4XS12T
Origin: Mainland China
Permitted Temperature During Operation: -10 °C to +40 °C
Permitted Temperature During Storage: -20 °C to +70 °C
Plug Type: EU
Precision: 0.2 mm/m (Lab data, actual 50%)
Protection Rating: IP54 (Dust/Splashproof)
Range (With Receiver): 5-100m

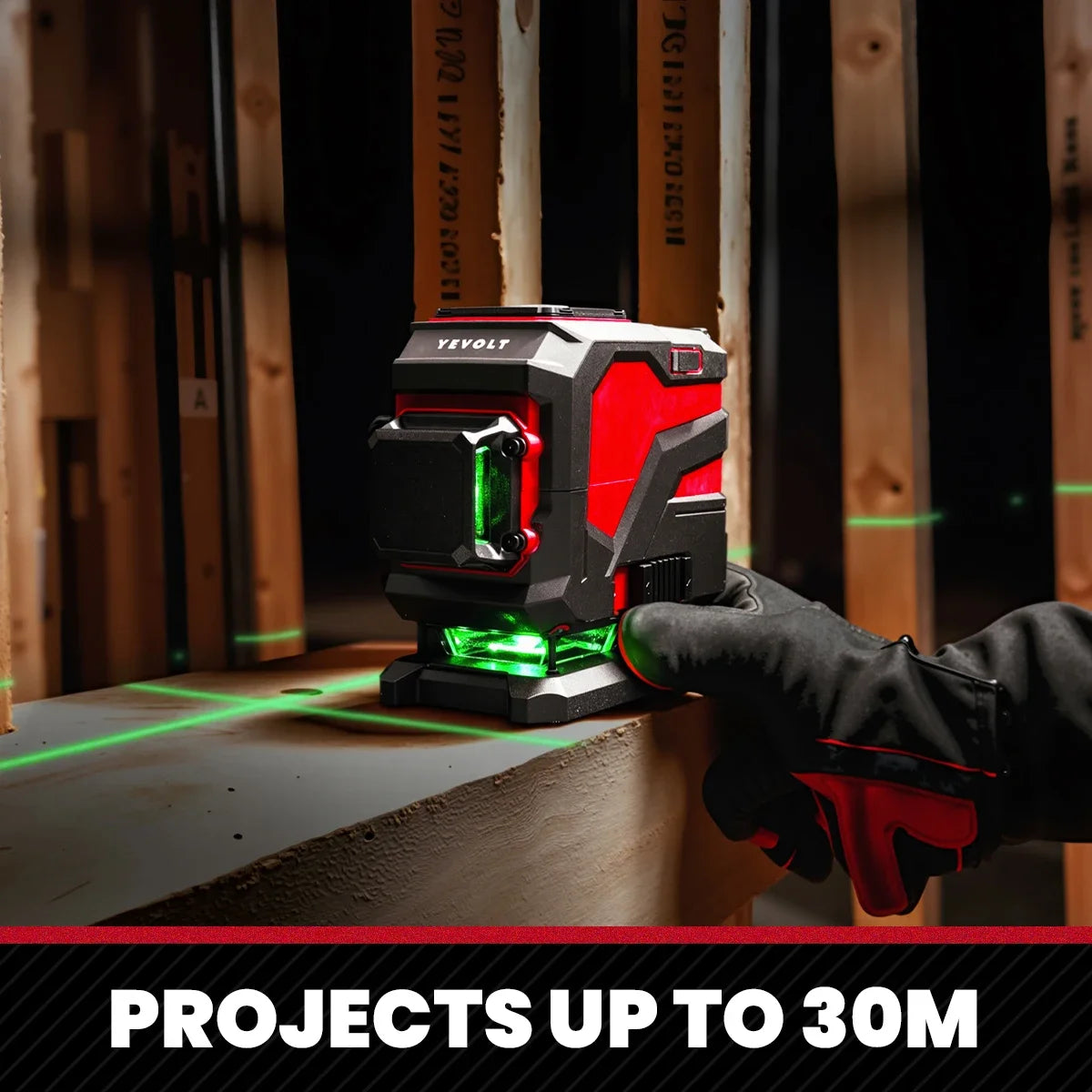

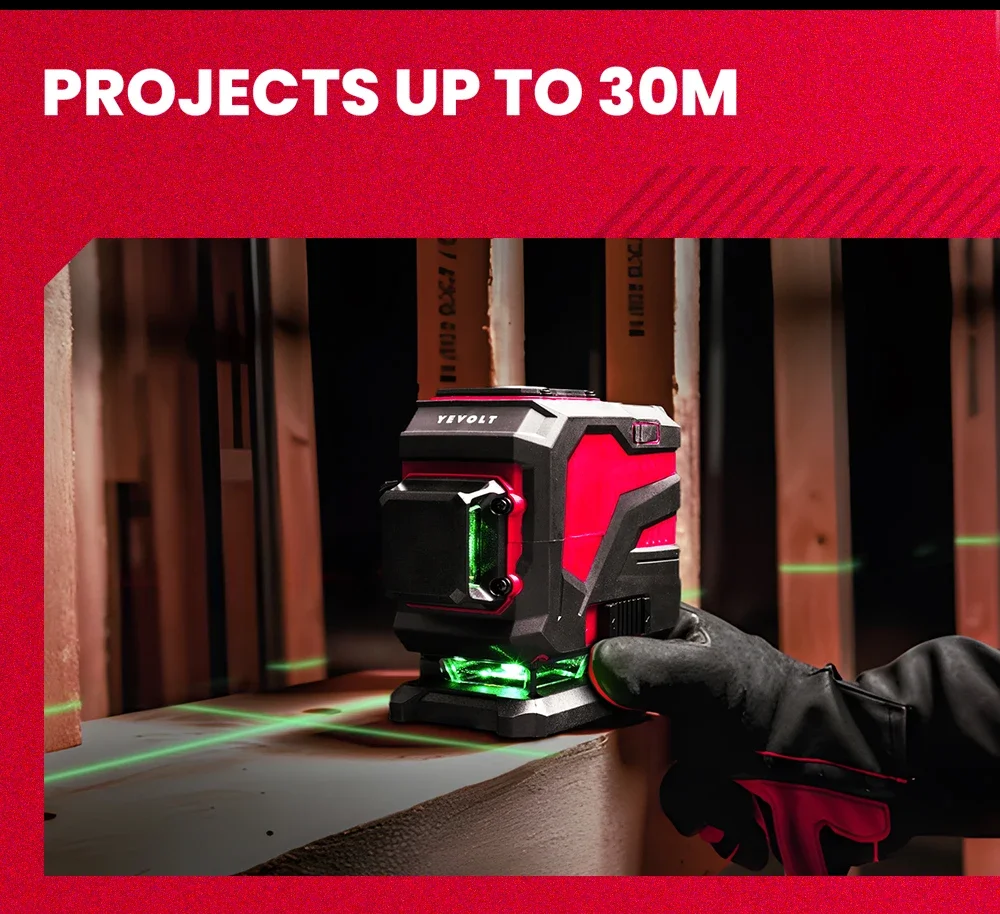

Range (Without Receiver): 30m
Recommended Temperature During Charging: 0 °C to +35 °C
Relative Air Humidity Max.: 90%
Self-Leveling Range: ±4°
Shortest Pulse Duration: 1/10000 s
Size: 125x85x125 mm
Tripod Mount: 1/4"
Type: Vertical & Horizontal Lasers
Wavelength: 520 nm, Class 2 (IEC/EN60825-1:2014), output power 1mW
is_customized: Yes
YEVOLT YVGLL4XS12T™ (Ground Measurement Edition)
💡Product Overview

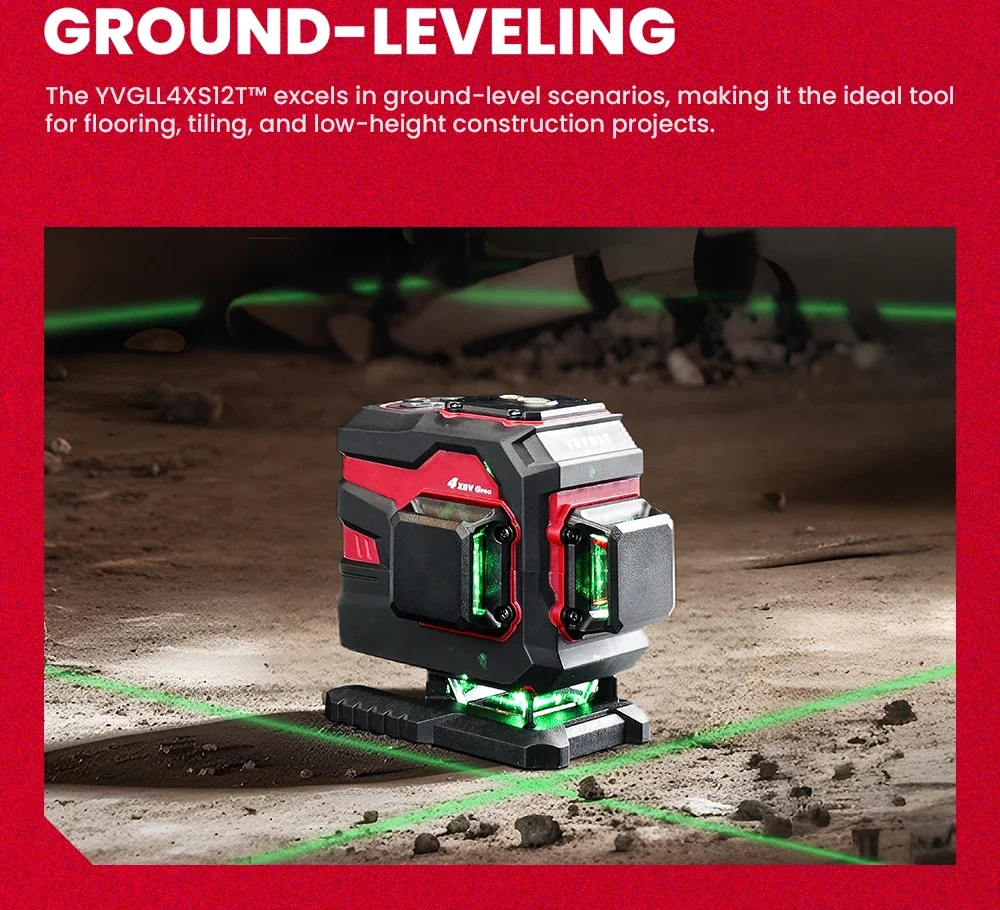

YEVOLT YVGLL4XS12T™ is a ground-optimized 3-plane green laser level with enhanced floor projection, tailored for tile laying, concrete pouring, and slope calibration in construction and landscaping.
🌟 Key Features
● 3-PLANE 12-LINE GREEN LASER: Delivers 12 high-intensity green lines (±0.2mm/m precision) for wall, floor, and slope alignment.

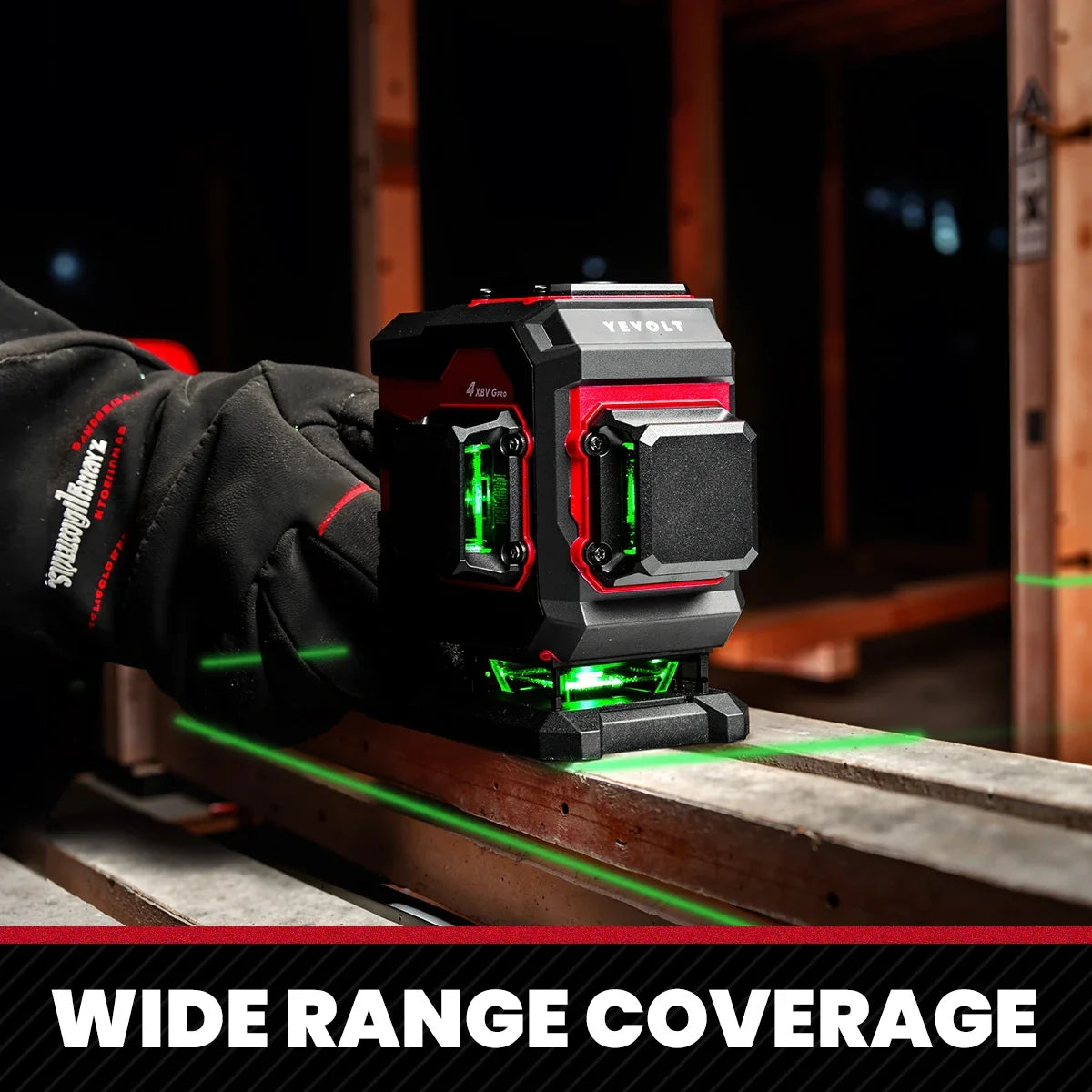

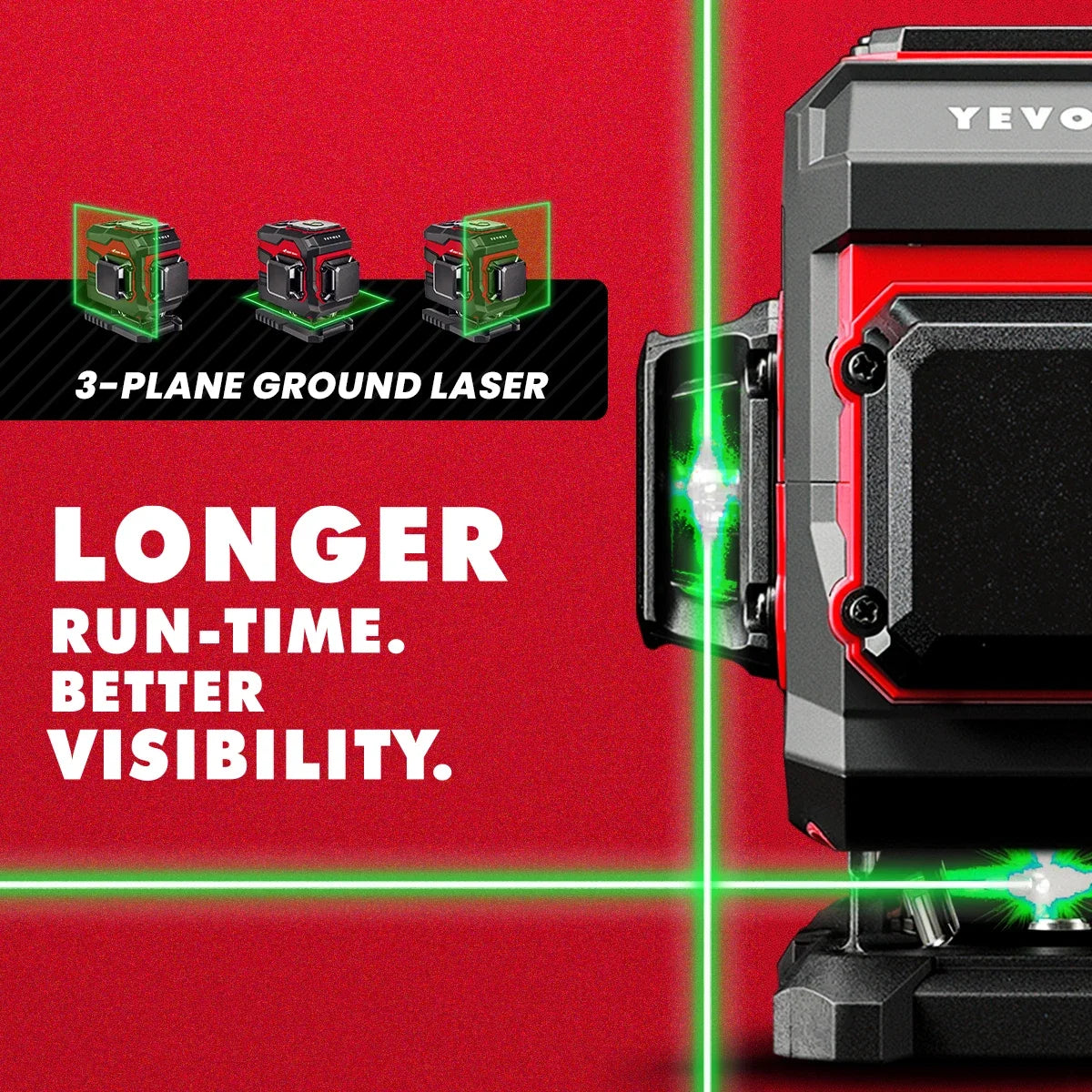

● GROUND LINE BOOST: 20% brighter ground laser for clear visibility on rough surfaces like unfinished concrete.

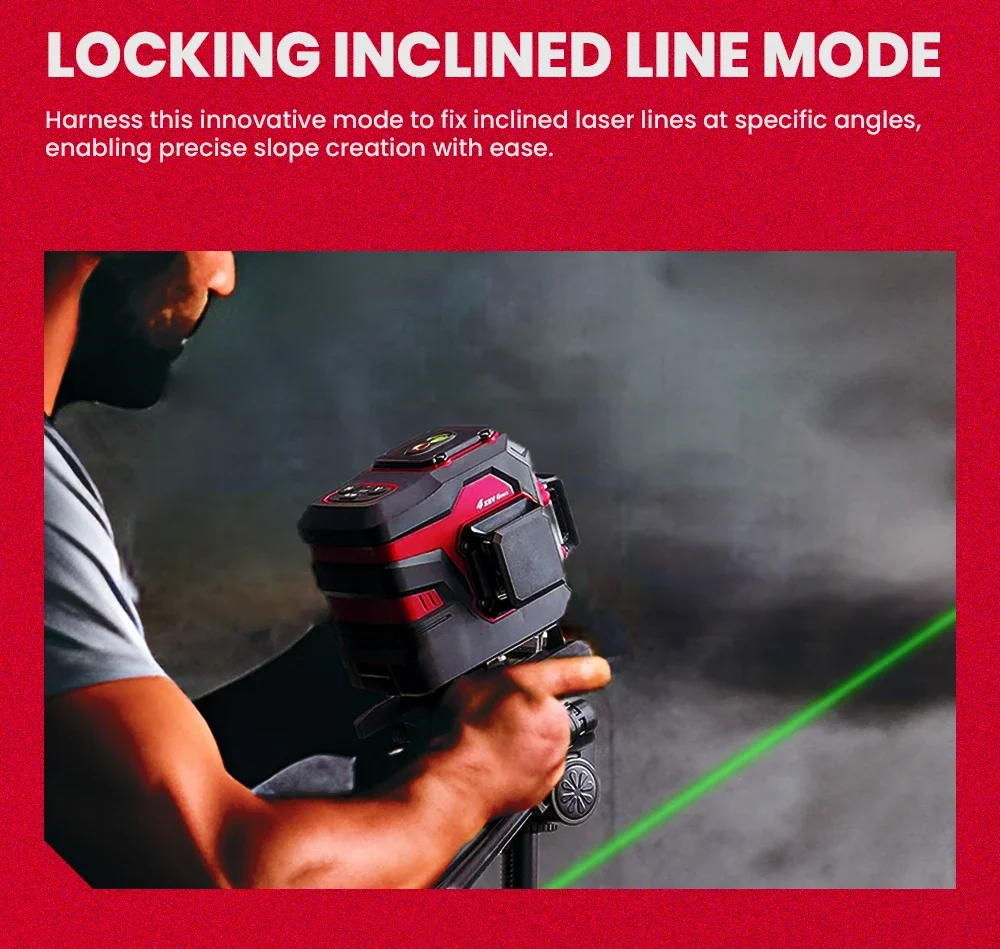

● SLOPE LOCK: Manually tilt laser lines up to ±15° for drainage gradients, stair rails, or ramps.

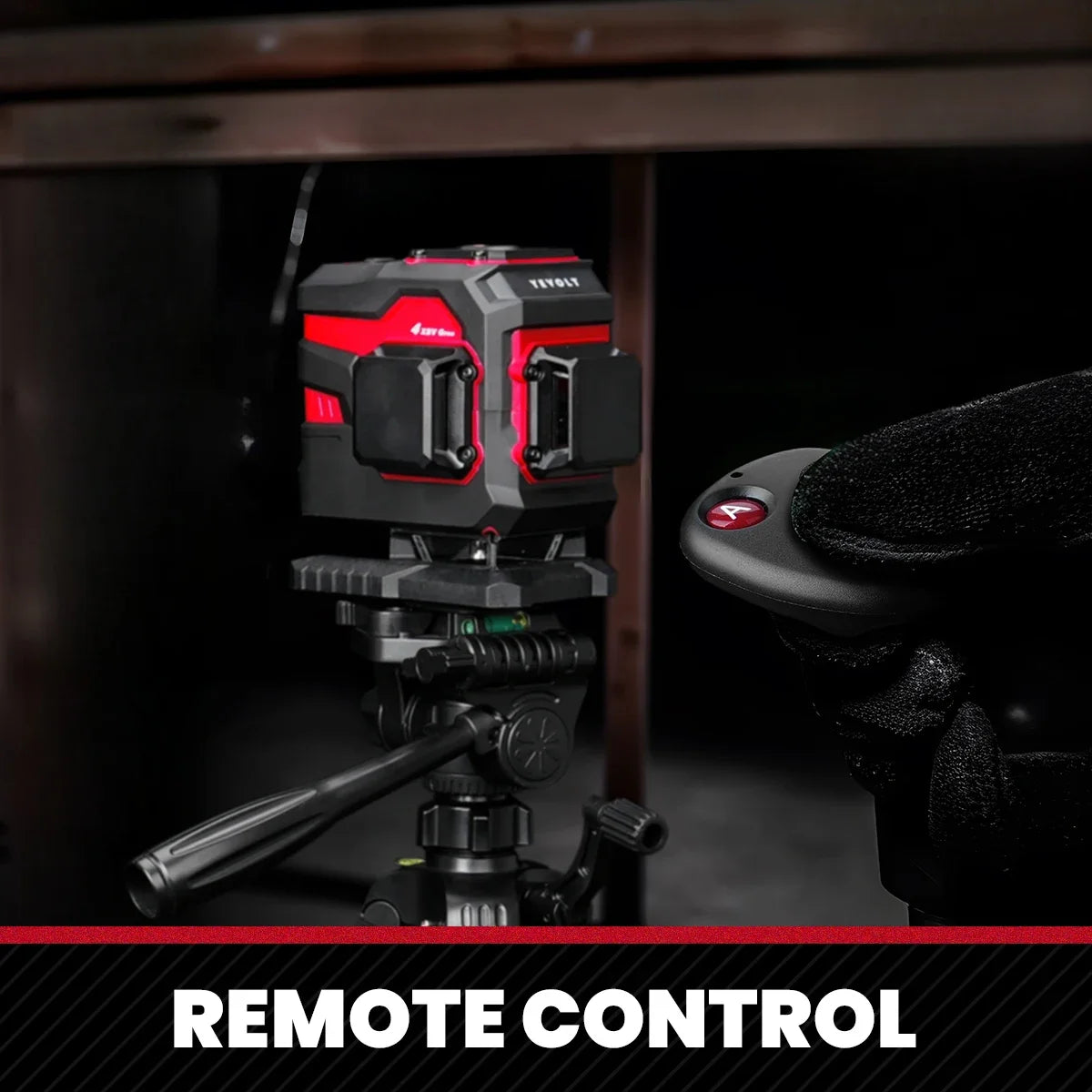

● REMOTE CONTROL: Included YVLL3DRCB1 remote enables line switching and power control from up to 10m away.
● LONG-LASTING POWER: 3000mAh/5200mAh battery or direct charging ensures more hours of continuous use.

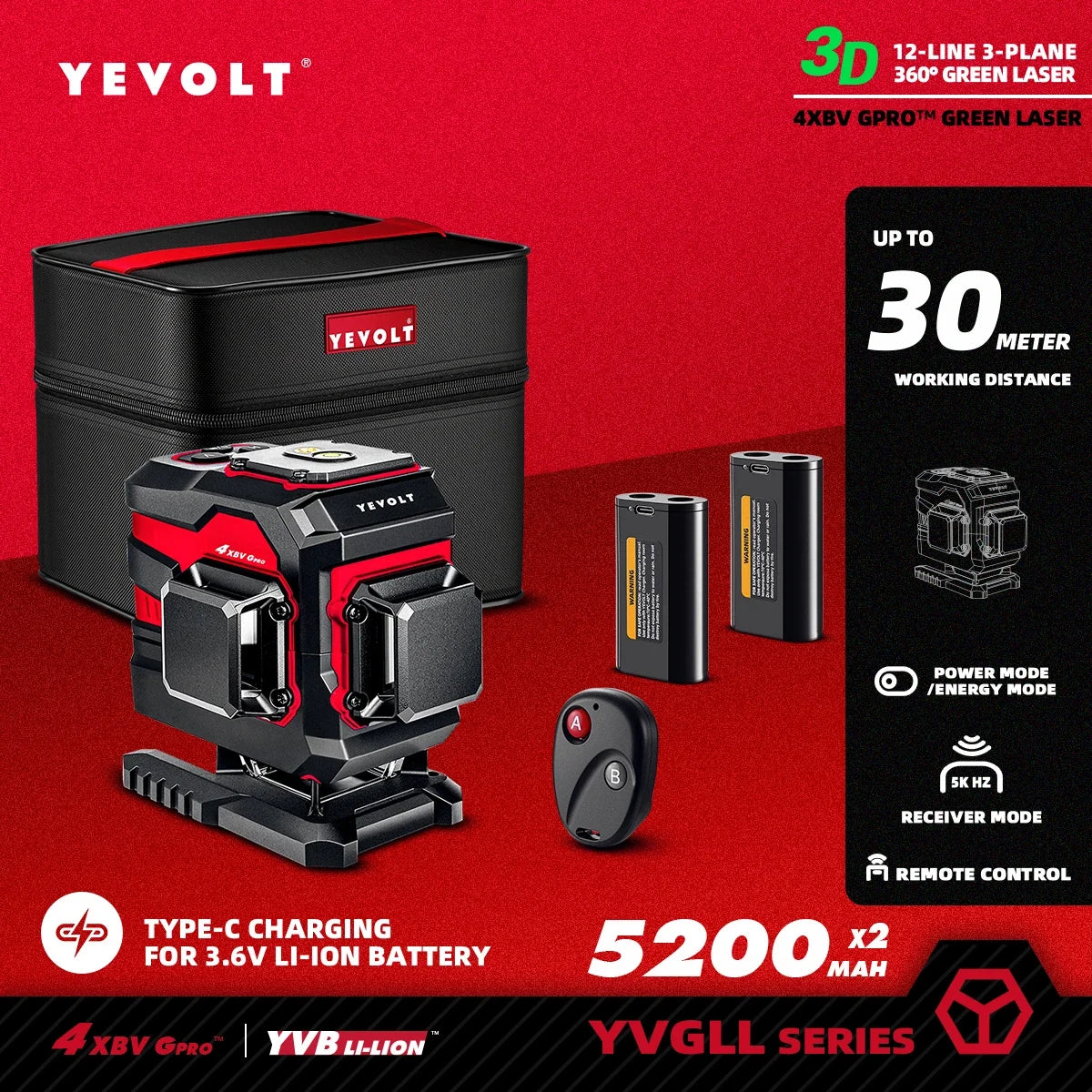

📦 Includes
● YVGLL4XS12T Laser Level
● 3000mAh/5200mAh Li-ion Battery
● Type-C Charger (Supports direct power supply)
● YVLL3DRCB1 Remote Control
● User Manual
● Hard Case
⚡Unified Technical Specifications
Laser Type: Green beam (520nm) across all models
Accuracy: ±0.2mm/m (Lab data, actual ±50%, the actual accuracy is affected by the air temperature and pressure)
Self-Leveling Range: ±4°
Protection: IP54 dust/water resistance
Operating Temperature: -10 °C to +40 °C
Charger: Type-C with dual-mode power (battery charging/direct device supply)
🛠 Scenario Solutions (Solve Pain Points)
Common Challenges |
Our Solution |
Tile misalignment? |
Floor-wall dual-line alignment |
Cropped ceiling fixtures? |
360° ceiling cross-line reference |
Stair rail angle struggles? |
Slope mode projects ideal lines |
Outdoor glare interference? |
Green laser + free enhancement glasses |
💡 Why Choose This?
"From interior finishing to outdoor projects – YEVOLT laser level meets patented green laser tech that exposes every error!"
